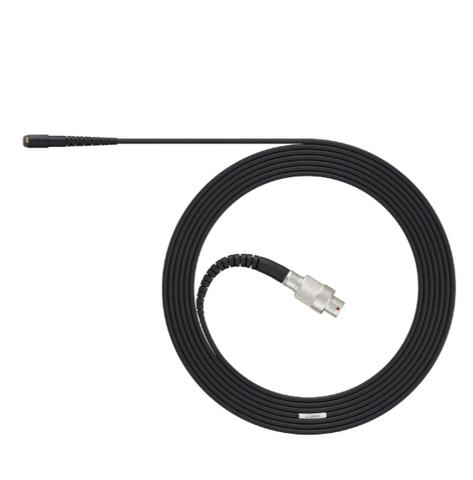

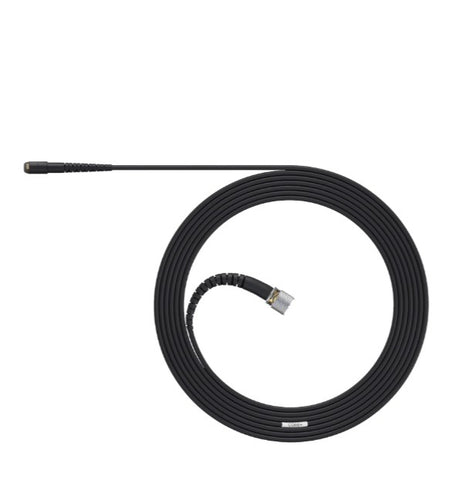

DPA 4660 CORE+ Heavy Duty Omni Mic, Normal SPL | Black, Beige

Vendor: DPA
DPA 4660 CORE+ Heavy Duty Omni Mic, Normal SPL | Black, Beige The beige DPA 4660 CORE+ Miniature Lavalier Microphone is a moisture-resistant microphone built for professional wireless systems used in broadcasting, live...
$670.00
Color
Black
Beige
End Connector

DPA 4660 CORE+ Heavy Duty Omni Mic, Normal SPL | Black, Beige

The beige DPA 4660 CORE+ Miniature Lavalier Microphone is a moisture-resistant microphone built for professional wireless systems used in broadcasting, live performances, and theatrical productions. Its electret-condenser capsule delivers crisp, clear, and intelligible speech, while its discreet design makes it ideal for presentations and demanding live-stage environments. The compact MicroLock connector supports a wide range of wireless transmitters through separately available adapters. Built for durability, the 4660 features a stainless-steel housing, a thicker 2.2 mm cable, and reinforced strain relief to withstand challenging working conditions. Its CORE+ technology provides a wide dynamic range and minimizes distortion at sound pressure levels (SPL) up to 126 dB RMS, delivering clean, natural sound even on loud stages. Two interchangeable capsule-protection grids are included to adjust the microphone’s sonic character for different placement positions. With normal sensitivity, the microphone handles peak SPLs up to 129 dB with less than 1% distortion, making it suitable for speakers, vocalists, and presenters. It can also capture instruments, offering versatility for houses of worship and live-event productions. The microphone operates on 5–10V plug-in power supplied by a compatible wireless microphone transmitter.

FEATURES

  • For Stage, Film, TV, and Presentation
  • Steel Housing & Reinforced 2.2mm Cable
  • MicroLock Connector with Adapter Options
  • For Lectrosonics Transmitters with LEMO
  • Omnidirectional for Consistent Levels
  • CORE+ for No Distortion up to 125 dB SPL
  • Handles Speech/Vocals to 126 dB SPL RMS
  • IP58-Certified Dust & Moisture Resistant
  • CORE+ Increases Dynamics & Reduces Noise
  • Requires 5 to 10V or Phantom Power
  • Includes Soft- and High-Boost Grids
Key Specs
Compatible Transmitters No Transmitter Connector is Included
Polar Pattern Omnidirectional
Power Sources Plug-In Power
Color Beige
Microphone
Compatible Transmitters No Transmitter Connector is Included
Polar Pattern Omnidirectional
Included Tone/Pattern Caps +4 dB Bright, +8 dB Very Bright
Performance
Frequency Response 20 Hz to 20 kHz
Maximum SPL 126 dB (RMS, 1% THD)
129 dB (Peak, 1% THD)
134 dB (Peak, 10% THD)
Sensitivity 20 mV/Pa (at 1 kHz)
Dynamic Range 106 dB (Typical)
Equivalent Noise Level 23 dB (A-Weighted)
Connectivity
Analog Output Connector 1x Microlock Coaxial (Locking), 3-Pin LEMO
Cable Length 5.9' / 1.8 m
Cable Diameter 0.1" / 2.2 mm
Power
Power Sources Plug-In Power
Operating Voltage 5 to 10 V
Physical
Color Beige, Black
Environmental Resistance Dust/Water-Resistant to 3' / 1 m (IP58)
Dimensions L: 0.7" / 17.6 mm (Microphone)
Weight 0.5 oz / 13 g (with Cable)
