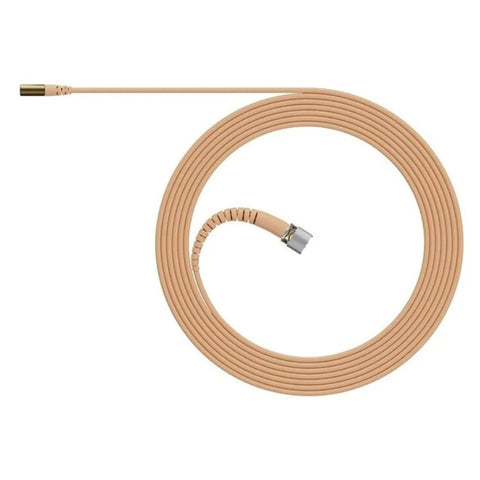

DPA 6060 CORE Omni Submini Mic, Normal SPL, Beige, MicroLock
Vendor: DPA
Available
DPA 6060 CORE Omni Submini Mic, Normal SPL, Beige, MicroLock
The DPA 6060 CORE Subminiature Lavalier Microphone in beige delivers exceptional speech clarity in an ultra-compact, discreet design. Designed for professional broadcast, theater, live performances, presentations, and film production, this moisture-resistant microphone features a tiny 3 mm electret-condenser capsule that captures crisp, natural, and intelligible audio while remaining easy to conceal beneath clothing or costumes. Powered by DPA’s advanced CORE technology, the 6060 provides extended dynamic range and extremely low self-noise for outstanding sound quality. Its miniature design makes it ideal for productions where discreet microphone placement is essential without compromising audio performance. The included capsule protection grid safeguards the microphone element while providing a subtle 4 dB boost between 8 and 20 kHz, enhancing vocal presence and clarity. The protective cap can be removed for cleaning and securely reattached with a firm, tactile click. Featuring a reliable MicroLock connector, the DPA 6060 CORE supports use with a wide range of wireless transmitters through separately available adapters. It operates on 5–10V plug-in power supplied by a compatible wireless transmitter.
FEATURES
- For Video/Film/TV, Broadcast & Theater
- Tiny 3mm Size Is Easy to Conceal
- Omnidirectional for Consistent Levels

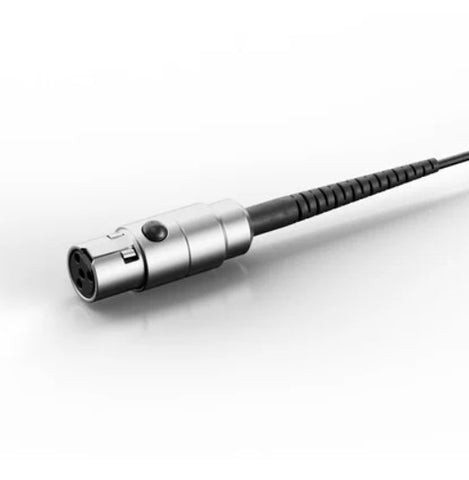

- MicroLock Connector with Adapter Options
- Speech/Vocals up to 123 dB SPL RMS
- IP58-Certified Dust & Moisture Resistant
- Requires 5 to 10V or Phantom Power
- Includes Soft-Boost Grid
| Compatible Transmitters | No Transmitter Connector is Included |
| Polar Pattern | Omnidirectional |
| Power Sources | Plug-In Power |
| Color | Beige |
| Compatible Transmitters | No Transmitter Connector is Included |
| Polar Pattern | Omnidirectional |
| Included Tone/Pattern Caps | +4 dB Bright |
| Frequency Response | 40 Hz to 20 kHz ±2 dB |
| Maximum SPL |
123 dB (1% THD, RMS) 126 dB (1% THD, Peak) 134 dB (10% THD) |
| Sensitivity | 20 mV/Pa (at 1 kHz) |
| Dynamic Range | 102 dB (A-Weighted) |
| Equivalent Noise Level | 24 dB (A-Weighted, 20 μPa, Typical) |
| Analog Output Connector | 1x Microlock Male |
| Cable Length | 5.9' / 1.8 m |
| Cable Diameter | 0.1" / 1.6 mm |
| Power Sources | Plug-In Power |
| Operating Voltage | 5 to 10 V |
| Color | Beige |
| Environmental Resistance | Dust/Water-Resistant to 3' / 1 m (IP58) |
| Dimensions | ø: 0.1 x L: 0.6" / 3.4 x L: 14.4 mm (Microphone) |
| Weight | 0.3 oz / 8 g (with Cable) |
