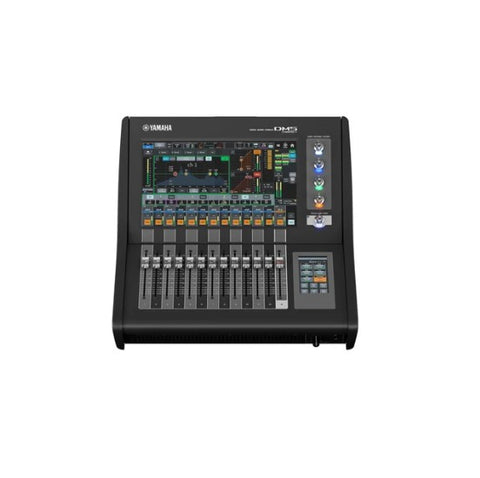

Yamaha DM5C Professional 48-channel Single Bay Digital Console

Yamaha DM5C Professional 48-channel Single Bay Digital Console

The Yamaha DM5C brings the powerful DM7 Series engine into a compact, road-ready console designed for demanding professional productions. Operating at 96 kHz with flagship-level processing, advanced effects, and flexible routing, the DM5C delivers the control and sound quality needed for live sound, corporate events, broadcast, theater, and touring applications. With 48 mixing channels, 16 analog inputs, and 24 outputs, the DM5C provides extensive connectivity without taking over your mix position. Its 13-fader 12+1 configuration gives engineers hands-on control, while the 13.3-inch multi-touch display and 4.3-inch utility display provide clear access to essential parameters and system functions. The adjustable main display can be positioned at four different viewing angles, helping reduce glare and improve visibility in challenging outdoor environments. Show file compatibility and sharing through the integrated DM Series Editor also make it easier for production teams to maintain consistent setups across different venues and systems. Built for professional use, the DM5C weighs approximately 29 lb, making it practical for touring, rental production, and mobile setups. Combining Yamaha's proven digital architecture, intuitive workflow, powerful processing, and professional connectivity, the DM5C delivers serious mixing capability in a compact footprint.

Features

• Renowned Yamaha Sound with 96kHz sample rate
• Screens: 13.3” + 4.3” touch screens
• Faders: 13 faders (12+1)
• Mixable Channels: 48 inputs
• Built from the DM7 Series engine
• 24 mix / 1 stereo / 10 matrix / 12 DCA
• 16 FX Rack
• 1 PY Slot
• Dante: 64x64
• USB to Host: 18x18

• Mixing Capacity: 48 Inputs
• Mix Buses: 24
• Matrices: 12
• Stereo Buses: TBA
• Cue Buses: 1
• Analog Input: 16
• Analog Output: 16
• Sampling Frequency: 48 kHz / 96 kHz
• Signal Delay: Less than 1.5 ms, INPUT to OMNI OUT @Fs=96 kHz
• Screens:
  • 13.3” multi-touch screen with Glass key x 1
  • 4.3” multi-touch screen with Glass key x 1
• Touch sensitive knobs in the Selected Channel section
• Fader: 100 mm touch-sensitive motorized fader (resolution=1024 steps) x 13
• Power Requirements: 100 to 240 V, 50 / 60 Hz
• Power Consumption: 130 W
• Dimensions (W x H x D): 17.5 x 9.3 x 17.3 inches (including rubber feet)
• Included Accessories: Read This First x 1, Power cord x 1, Dust cover x 1, Cable hook x 1, Nuendo Live and VST Rack Elements Download, Information leaflet x 1
