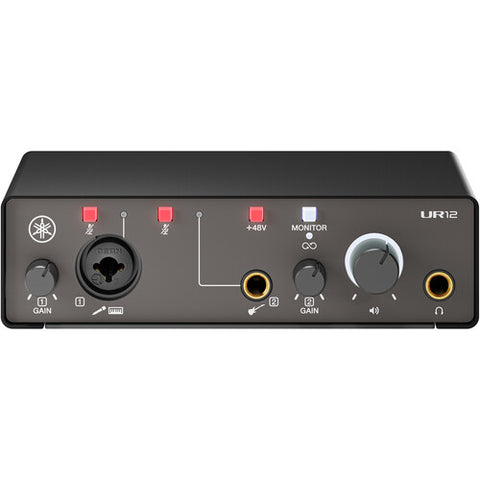

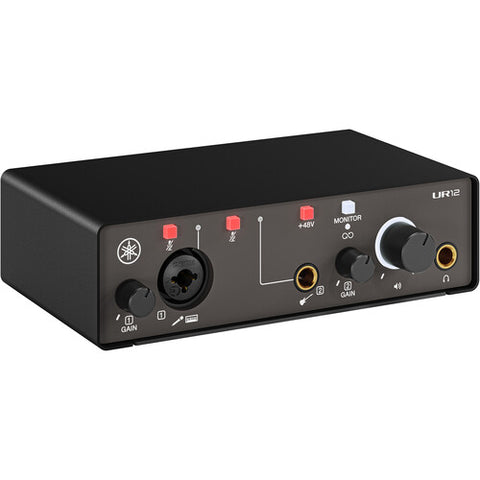

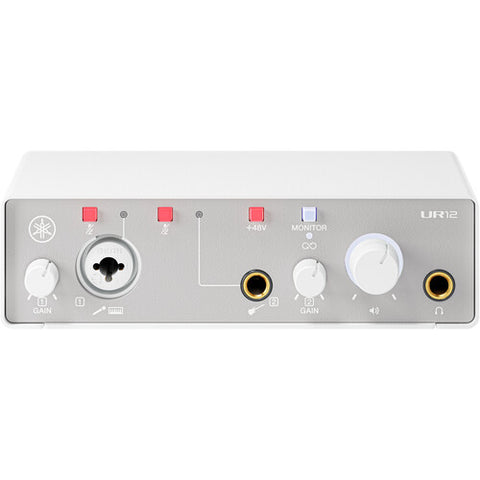

Yamaha UR12MK3 Black & White 2x2 USB-C Audio Interface
Vendor: Yamaha
Unavailable
Yamaha UR12MK3 Black & White 2x2 USB-C Audio Interface
The Yamaha UR12MK3 is a compact 2-in/2-out USB-C audio interface designed for content creators, podcasters, solo musicians, and anyone looking for a portable solution for high-quality audio recording. Combining a Class-A UR mic preamp, flexible input options, and convenient monitoring features, the UR12MK3 provides a versatile setup for recording, streaming, podcasting, and music production. The front panel features an XLR-1/4" combo mic/line input equipped with a Class-A UR mic preamp, along with a dedicated 1/4" Hi-Z input for passive instruments such as electric guitar and bass. This allows the UR12MK3 to function effectively as a DI box, while independent gain controls provide convenient adjustment for each input.
For monitoring and content creation, the UR12MK3 includes low-latency direct monitoring, loopback, and mute functions for all inputs, giving users greater control over their recording and streaming workflow. The rear panel provides two 1/4" line outputs for stereo connections, plus two USB-C ports—one for connecting to a host device and another for power. Supporting up to 24-bit/192 kHz conversion, the UR12MK3 delivers high-quality audio capture while maintaining a compact and lightweight design that's easy to take anywhere. Plug-and-play compatibility with Windows, macOS, and iOS devices eliminates the need for drivers, making setup quick and straightforward. The UR12MK3 also includes a USB-C to USB-A cable and a bundle of audio production software, giving you the essential tools to get started right away.
Features
- For Podcasts, Streaming, and Music
- One XLR-1/4" Combo Mic/Line Input
- Class-A UR Mic Preamp
- Direct Monitoring, Loopback, and Mute
- Hi-Z 1/4" Input with Dedicated Gain Knob
- Selectable +48V Phantom Power
- Headphone Out, Stereo Line Output
- 24-Bit / 192 kHz AD/DA
- Dedicated USB-C Ports for Host and Power
- Includes USB-A to USB-C Cable
| Channels of I/O | 2 Inputs / 2 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 1 |
| Analog Audio I/O |
1x Combo XLR-1/4" TRS Mic/Line Input 1x 1/4" TS Hi-Z Input 2x 1/4" TRS Line Output 1x 1/4" TRS Headphone Output |
| No | |
| Host Connection | 1x USB-C (Class-Compliant) |
| Power Requirements | USB Bus Power |
| Display | No |
| Channels of I/O | 2 Inputs / 2 Outputs |
| Built-In DSP | No |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 1 |
| Built-In Microphone | No |
| Pad | No |
| Gain/Trim Range |
54 dB Hi-Z: 39.5 dB |
| High-Pass Filter | No |
| Solo/Mute | Mute per Input Channel |
| Analog Audio I/O |
1x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel) 1x 1/4" TS Hi-Z Input (Front Panel) 2x 1/4" TRS Line Output 1x 1/4" TRS Headphone Output (Front Panel) |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | No |
| Host Connection / USB | 1x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1x USB-C (Power Input) |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | No |
| Frequency Response | 20 Hz to 20 kHz +0/-0.3 dB |
| Headphone Output Power | 40 mW per Channel into 40 Ohms |
| Dynamic Range |
Mic/Line/Hi-Z Inputs: 106 dB Line Outputs: 107 dB |
| THD | 0.004% (At 1 kHz) |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Sync Sources | No |
| Media/Memory Card Slot | No |
| OS Compatibility |
Computer: macOS 11 to 14 / Windows 10 to 11 Mobile: iOS Only |
| Processor Requirement | Intel Core |
| RAM Requirements | 4 GB |
| Storage Requirements | 50 MB |
| Mobile Device Compatibility |
iPad iPhone |
| Required Hardware | USB Cable |
| Power Requirements | USB Bus Power |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | 6.89 x 5.71 x 2.36" / 17.5 x 14.5 x 5.99 cm |
| Weight | 1.3 lb / 0.6 kg |
