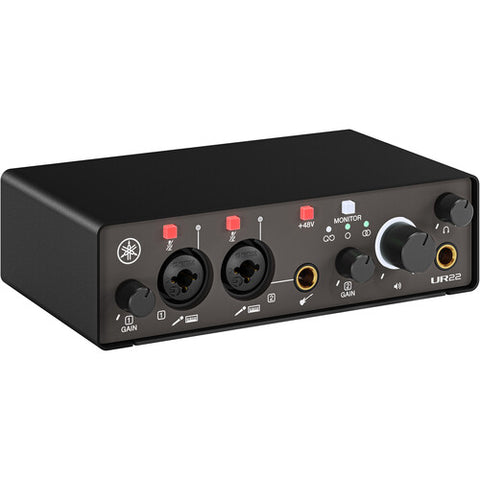

Yamaha UR22MK3 Black & White 2x2 USB-C Audio Interface

Vendor: Yamaha
Yamaha UR22MK3 Black & White 2x2 USB-C Audio Interface The Yamaha UR22MK3 is a compact and versatile 2-in/2-out USB-C audio interface designed for content creators, podcasters, musicians, and home recording enthusiasts. Featuring two...
$169.99 $203.00
Color
Black
White

Yamaha UR22MK3 Black & White 2x2 USB-C Audio Interface

The Yamaha UR22MK3 is a compact and versatile 2-in/2-out USB-C audio interface designed for content creators, podcasters, musicians, and home recording enthusiasts. Featuring two XLR-1/4" combo inputs with Yamaha’s Class-A UR mic preamps, it delivers high-quality audio capture in a portable desktop format. Built for flexible recording and streaming, the UR22MK3 includes low-latency direct monitoring, loopback, and input mute functions, making it suitable for podcasting, live streaming, voice recording, music production, and other creative workflows. A dedicated 1/4" Hi-Z input provides direct connection for passive instruments such as electric guitar and bass, allowing the interface to function effectively as a DI solution. Each input has its own dedicated gain control for quick and precise level adjustment. On the rear panel, two 1/4" line outputs provide stereo connectivity, while two USB-C ports offer separate connections for your host device and power. Supporting up to 24-bit/192 kHz audio conversion, the UR22MK3 provides detailed, high-resolution recording performance. With plug-and-play compatibility for Windows, macOS, and iOS, the UR22MK3 requires no additional drivers for supported devices. Its compact, lightweight design makes it easy to take between your studio, workspace, and recording locations. A USB-C to USB-A cable and audio production software bundle are included to help you get started right away.

Features

  • For Podcasts, Streaming, and Music
  • Two XLR-1/4" Combo Mic/Line Inputs
  • Class-A UR Mic Preamps
  • Direct Monitoring, Loopback, and Mute
  • Hi-Z 1/4" Input with Dedicated Gain Knob
  • Selectable +48V Phantom Power
  • Headphone Out, Stereo Line Output
  • 24-Bit / 192 kHz AD/DA
  • Dedicated USB-C Ports for Host and Power
  • Includes USB-A to USB-C Cable
Key Specs
Channels of I/O 2 Inputs / 2 Outputs
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Inputs 2
Analog Audio I/O 2x Combo XLR-1/4" TRS Mic/Line Input
1x 1/4" TS Hi-Z Input
2x 1/4" TS Line Output
1x 1/4" TRS Headphone Output
Digital Audio I/O No
Host Connection 1x USB-C (Class-Compliant)
Power Requirements USB Bus Power
General
Display No
Channels of I/O 2 Inputs / 2 Outputs
Built-In DSP No
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Inputs 2
Built-In Microphone No
Signal Processing
Pad No
High-Pass Filter No
Solo/Mute Mute per Input Channel
Connectivity
Analog Audio I/O 2x Combo XLR-1/4" TRS Balanced Mic/Line Input (Front Panel)
1x 1/4" TS Hi-Z Input (Front Panel)
2x 1/4" TS Line Output
1x 1/4" TRS Headphone Output (Front Panel)
Phantom Power 48 V, Selectable On/Off
Digital Audio I/O No
Host Connection / USB 1x USB-C (Class-Compliant)
Host Connection Protocol USB 2.0
USB (Non-Host) 1x USB-C (Power Input)
Sync I/O No
Network I/O No
MIDI I/O No
Expansion Slots No
Wireless No
Digital Audio
Sample Rates Up to 192 kHz
Sample Rate Conversion No
Bit Depths 24-Bit
Sync Sources No
Audio Storage & Playback
Media/Memory Card Slot No
Compatibility
OS Compatibility Computer: macOS 11 to 14 / Windows 10 to 11
Mobile: iOS Only
Processor Requirement Intel Core
RAM Requirements 4 GB
Storage Requirements 50 MB
Mobile Device Compatibility iPad
iPhone
Required Hardware USB Cable
Power
Power Requirements USB Bus Power
Physical
Dimensions 6.89 x 5.71 x 2.36" / 17.5 x 14.5 x 5.99 cm
Weight 1.3 lb / 0.6 kg
