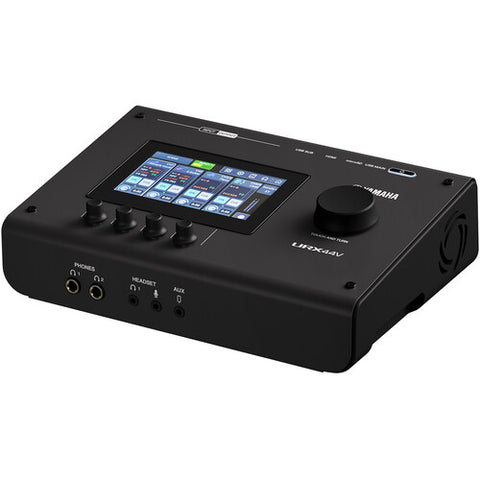

Yamaha URX44V Black & White 6x4 USB-C Audio/Video Interface
Vendor: Yamaha
Available
Yamaha URX44V Black & White 6x4 USB-C Audio/Video Interface
Take your small-scale film productions, podcasts, livestreams, and content creation to the next level with the Yamaha URX44V, a versatile 6x4 audio/video interface designed to bring professional control and flexible production capabilities to modern creative workflows. Featuring an LCD touchscreen GUI, customizable control knobs, onboard DSP-powered mixing and effects, and an HDMI port for video production, the URX44V provides a comprehensive toolkit for creators working with both audio and video. The URX44V supports 32-bit / 192 kHz audio, delivering high-resolution conversion and a wide dynamic range for detailed, crisp recordings. Its intuitive interface and customizable controls make it easy to manage complex production tasks while keeping essential functions readily accessible.
Two USB-C ports provide flexible connectivity. The Main USB-C connection supports up to 18-track recording and playback, while the Sub USB-C connection provides two-track audio. The interface also features four XLR-1/4" combo inputs supporting mic, line, and Hi-Z sources with up to 78 dB of gain, making it suitable for microphones, instruments, and other audio sources. For flexible monitoring and routing, the URX44V provides stereo 1/4" TRS line and main outputs, dual 1/4" headphone outputs, and multiple 3.5mm connections for headset, mic/line, and auxiliary sources. A built-in microSD card slot allows up to 16-track recording with two-track playback without requiring a computer, making the URX44V well suited for standalone recording and mobile production. The URX44V is designed to give creators the tools they need to build a complete production workflow. It includes a USB-C cable, AC power adapter, and Steinberg audio production software suite, providing a convenient starting point for recording, streaming, podcasting, and video production.
Features
- For Content Creation and Streaming
- 32-Bit / 192 kHz Sampling
- Onboard DSP-Powered Mixing and Effects
- Integrated LCD Touch-Panel GUI
- Customizable Knobs for Speedy Workflow
- Dual USB-C Ports: Main and Sub
- Assistive Tools for Easy Postproduction
- HDMI I/O: Up to 4K/60 or 1080p/240 Video
- Four XLR-1/4" Combo Inputs
- 16-Track microSD Recording
| Form Factor | Desktop |
| Channels of I/O | Analog: 4 Input / 4 Output Digital: No Digital I/O |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | 4 |
| Input Level Adjustment | Knob |
| Analog Audio I/O | 4x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input 1x 1/8" / 3.5 mm TRS Mic/Line/Headset Input 1x 1/8" / 3.5 mm TRS Mic/Line Input 1x 1/8" / 3.5 mm TRS Aux Input 2x 1/4" TRS Line Output 2x 1/4" TRS Headphone Output 2x 1/4" TRS Main Output |
| 2x USB-C | |
| Power Requirements | AC/DC Power Adapter (Included) |
| Form Factor | Desktop |
| Display | 4.3" Color LCD Touchscreen |
| Channels of I/O |
Analog: 4 Input / 4 Output Digital: No Digital I/O |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | 4 |
| Built-In Microphone | No |
| Input Level Adjustment | Knob |
| Gain/Trim Range | 78 dB |
| Built-In Effects |
Vocal Effect Reverb Amp Simulator |
| Analog Audio I/O |
4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1x 1/8" / 3.5 mm TRS Mic/Line/Headset Input 1x 1/8" / 3.5 mm TRS Mic/Line Input 1x 1/8" / 3.5 mm TRS Aux Input 2x 1/4" TRS Line Output 2x 1/4" TRS Headphone Output 2x 1/4" TRS Main Output |
| Phantom Power | 48 V |
| Digital Audio I/O | No |
| Video I/O |
1x HDMI (12G-SDI) Input 1x HDMI (12G-SDI) Output |
| Host Connection / USB | 2x USB-C |
| Host Connection Protocol | Not Specified by Manufacturer |
| USB (Non-Host) | No |
| Wireless | No |
| Frequency Response | 20 Hz to 20 kHz |
| Headphone Output Power | 100 mW per Channel into 40 Ohms |
| Dynamic Range |
Combo XLR-1/4" Mic/Line/Hi-Z Inputs: 115 dB 1/4" Outputs: 125 dB |
| THD |
Combo XLR-1/4" Line/Mic/Hi-Z Inputs: 0.0008% 1/4" Line Outputs: 0.00036% |
| EIN | -128 dBA |
| Sample Rates | Up to 192 kHz |
| Bit Depths | 32-Bit |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
| OS Compatibility | macOS / Windows |
| Required Hardware | USB Cable |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 100 to 240 VAC (Included) |
| Power Consumption |
38.4 W (Typical) 0.1 W (Standby) |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Dimensions | 9.6 x 7.2 x 3.1" / 24.4 x 18.3 x 7.9 cm |
| Weight | 4.4 lb / 2 kg |
