Bose FreeSpace ZA 2120-LZA Zone Amplifier
Vendor: Bose
Description Bose FreeSpace ZA 2120-LZA Zone Amplifier The Bose® FreeSpace® ZA 2120-LZA zone amplifier is professionally designed to provide sound system expansion and basic amplification when using front-end Bose products just like ControlSpace® engineered sound processors and FreeSpace® integrated zone...
Available

Bose FreeSpace ZA 2120-LZA Zone Amplifier
The Bose® FreeSpace® ZA 2120-LZA zone amplifier is professionally designed to provide sound system expansion and basic amplification when using front-end Bose products just like ControlSpace® engineered sound processors and FreeSpace® integrated zone amplifiers. With the inclusion of AmpLink, via a shielded CAT 5 cable up to 8 audio channels are able to be sent to the amp from a Bose DSP.
FEATURES
- Reliable 2 x 120 W Class-D amplification optimized for low-impedance applications
- AmpLink transports up to 8 uncompressed, near zero latency, digital audio channels between Bose DSPs and the ZA 2120-LZA via shielded CAT 5 cable. The amp also supports a THRU path for daisy-chaining digital audio to other Bose AmpLink products at a distance of up to 10 m between products
- Remote option for volume control eliminates the need for bulky, inefficient, and sound-altering in-line volume controls
- Expansion-ready connectivity with FreeSpace® IZA amplifiers and ControlSpace® engineered sound processors when additional sources and loudspeaker processing is required
- Intuitive feature setup enables the amplifier to be configured without a PC for input, output and automatic standby options
- Auto-Standby feature allows the amplifier to consume less power when not in use
- Remote muting allows the amplifier to be muted via a centralized control system

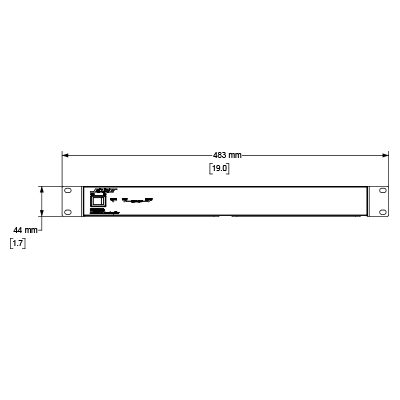

Mechanical Diagrams
Technical Summary
THD+N
≤ 0.5 % (at rated power)
Amplifier Power
2 x 120 W @ 4 Ω, 2 x 60 W @ 8 Ω
Frequency Response
20 Hz - 20 kHz (+0/–3 dB, @ 1 W reference 1 kHz)
Dynamic Range
88 dB
Input Channels
Analog: 1 unbalanced, 1 balanced
AmpLink: 8 digital
