DPA Microphones 4060 CORE+ Normal Sensitivity Omni Lavalier Microphone with MicroLock Connector (Black, Brown, Beige, White)
Vendor: DPA
Available
DPA Microphones 4060 CORE+ Normal Sensitivity Omni Lavalier Microphone with MicroLock Connector (Black, Brown, Beige, White)
The DPA 4060 CORE+ is a miniature, moisture-resistant lavalier microphone designed for professional wireless systems and demanding applications including broadcast, live performance, theatre, presentations, houses of worship, and live event production. Its compact, unobtrusive design makes it easy to integrate into professional setups while providing the detailed sound capture expected from a high-performance miniature microphone. At its core, the 4060 CORE+ uses an electret-condenser capsule designed to deliver crisp, clear, and intelligible speech. This makes it well suited to speakers, presenters, and vocalists, while its ability to handle instruments adds further flexibility for live productions and houses of worship. The microphone incorporates CORE+ technology, providing a wide dynamic range and helping to almost completely neutralise distortion at sound pressure levels up to 126 dB RMS. This allows the 4060 CORE+ to maintain a clean, crisp, and natural sonic character, including in demanding loud-stage environments. The 4060 is wired for normal sensitivity and can handle peak sound pressure levels of up to 131 dB with less than 1% distortion. This gives the microphone considerable headroom for typical speakers, vocalists, and presenters while also making it effective for capturing musical instruments.
Two interchangeable capsule protection grids are included, allowing you to alter the microphone's sonic character according to different placement positions. This provides additional flexibility when positioning the microphone for different performers or applications. The black 4060 CORE+ also features a compact MicroLock connector, providing a reliable connection and compatibility with a wide variety of wireless transmitters when used with separately available adapters. The microphone is powered by 5–10V plug-in power from a wireless microphone transmitter, making it suitable for integration into professional wireless microphone systems. With its miniature and unobtrusive form, moisture resistance, CORE+ technology, wide dynamic range, high SPL capability, interchangeable protection grids, and MicroLock connectivity, the DPA 4060 CORE+ provides a flexible microphone solution for professionals who need detailed speech and instrument capture across broadcast, performance, theatre, presentations, and live events.
Features
- For Stage, Film, TV, and Presentation
- Omnidirectional for Consistent Levels
- MicroLock Connector with Adapter Options
- CORE+ for No Distortion up to 126 dB SPL
- Handles Speech/Vocals up to 128 dB SPL
- IP58-Certified Dust & Moisture Resistant
- CORE+ Increases Dynamics & Reduces Noise
- Requires 5 to 10V or Phantom Power
- Includes Soft- and High-Boost Grids
- For Lectrosonics Transmitters with LEMO
- CORE+ for No Distortion up to 126 dB SPL
- Speech/Vocals up to 128 dB SPL RMS
- For Shure Transmitters with TA4M
- For Sennheiser Transmitters with 3.5mm
| Compatible Transmitters | Sennheiser: |
| Polar Pattern | Omnidirectional |
| Power Sources | Plug-In Power |
| Color | Black |
| Compatible Transmitters | Sennheiser: Evolution Series, SL Bodypack |
| Polar Pattern | Omnidirectional |
| Included Tone/Pattern Caps | +4 dB Bright, +8 dB Very Bright |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum SPL |
128 dB (RMS, 1% THD) 131 dB (Peak, 1% THD) 134 dB (Peak, 10% THD) |
| Sensitivity | 20 mV/Pa (at 1 kHz) |
| Dynamic Range | 106 dB (Typical) |
| Equivalent Noise Level | 23 dB (A-Weighted) |
| Analog Output Connector | 1x 1/8" / 3.5 mm Locking TRS |
| Cable Length | 5.9' / 1.8 m |
| Power Sources | Plug-In Power |
| Operating Voltage | 5.0 to 10.0 V |
| Color | Black, Brown, Beige, White |
| Environmental Resistance | Dust/Water-Resistant to 3' / 1 m (IP58) |
| Dimensions | L: 0.5" / 12.7 mm (Microphone) |
| Weight | 0.3 oz / 7.5 g (with Cable) |
Key Specs for TA4F
| Compatible Transmitters |
Line 6: Shure: Toa: |
| Polar Pattern | Omnidirectional |
| Power Sources | Plug-In Power |
| Color | Black, Brown, Beige, White |
| Compatible Transmitters |
Line 6: Shure: AD1, ADX1, AXT100, BLX1, GLXD1, MXW1, PGXD1, QLXD1, SLXD1, SLX1, ULXD1, ULX1 Toa: |
| Polar Pattern | Omnidirectional |
| Included Tone/Pattern Caps | +4 dB Bright, +8 dB Very Bright |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum SPL |
128 dB (RMS, 1% THD) 131 dB (Peak, 1% THD) 134 dB (Peak, 10% THD) |
| Sensitivity | 20 mV/Pa (at 1 kHz) |
| Dynamic Range | 106 dB (Typical) |
| Equivalent Noise Level | 23 dB (A-Weighted) |
| Analog Output Connector | 1x TA4F/Mini-XLR 4-Pin |
| Cable Length | 5.9' / 1.8 m |
| Power Sources | Plug-In Power |
| Operating Voltage | 5.0 to 10.0 V |
| Color | Black |
| Environmental Resistance | Dust/Water-Resistant to 3' / 1 m (IP58) |
| Dimensions | L: 0.5" / 12.7 mm (Microphone) |
| Weight | 0.3 oz / 7.5 g (with Cable) |

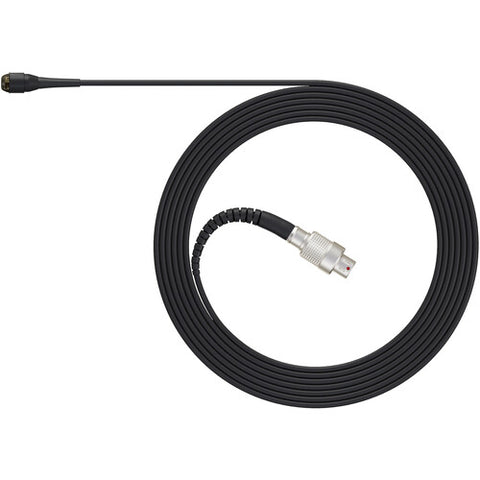

Key Specs for 3-Pin LEMO
| Compatible Transmitters |
Lectrosonics: Sennheiser: WisyCom: |
| Polar Pattern | Omnidirectional |
| Power Sources | Plug-In Power |
| Color | Black |
| Compatible Transmitters |
Lectrosonics: SSM, DBU Sennheiser: SK WisyCom: MTP |
| Polar Pattern | Omnidirectional |
| Included Tone/Pattern Caps | +4 dB Bright, +8 dB Very Bright |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum SPL |
128 dB (RMS, 1% THD) 131 dB (Peak, 1% THD) 134 dB (Peak, 10% THD) |
| Sensitivity | 20 mV/Pa (at 1 kHz) |
| Dynamic Range | 106 dB (Typical) |
| Equivalent Noise Level | 23 dB (A-Weighted) |
| Analog Output Connector | 1x LEMO 3-Pin |
| Cable Length | 5.9' / 1.8 m |
| Power Sources | Plug-In Power |
| Operating Voltage | 5.0 to 10.0 V |
| Color | Black, Brown, Beige, White |
| Environmental Resistance | Dust/Water-Resistant to 3' / 1 m (IP58) |
| Dimensions | L: 0.5" / 12.7 mm (Microphone) |
| Weight | 0.3 oz / 7.5 g (with Cable) |

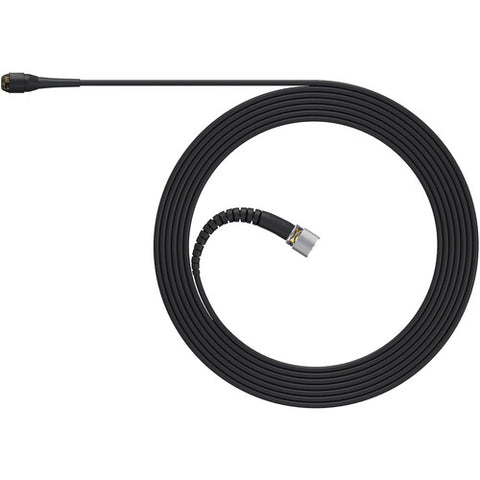

Key Specs for Micro Lock
| Compatible Transmitters | Not Specified by Manufacturer |
| Polar Pattern | Omnidirectional |
| Power Sources | Plug-In Power |
| Color | Black, Brown, Beige, White |
| Compatible Transmitters | Not Specified by Manufacturer |
| Polar Pattern | Omnidirectional |
| Included Tone/Pattern Caps | +4 dB Bright, +8 dB Very Bright |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum SPL |
126 dB (RMS, 1% THD) 129 dB (Peak, 1% THD) 131 dB (Peak, 10% THD) |
| Sensitivity | 20 mV/Pa (at 1 kHz) |
| Dynamic Range | 106 dB (Typical) |
| Equivalent Noise Level | 23 dB (A-Weighted) |
| Analog Output Connector | 1x Microlock Coaxial (Locking) |
| Cable Length | 5.9' / 1.8 m |
| Power Sources | Plug-In Power |
| Operating Voltage | 5 to 10 V |
| Color | Black, Brown, Beige, White |
| Environmental Resistance | Dust/Water-Resistant to 3' / 1 m (IP58) |
| Dimensions | L: 0.5" / 12.7 mm (Microphone) |
| Weight | 0.3 oz / 7.5 g (with Cable) |
