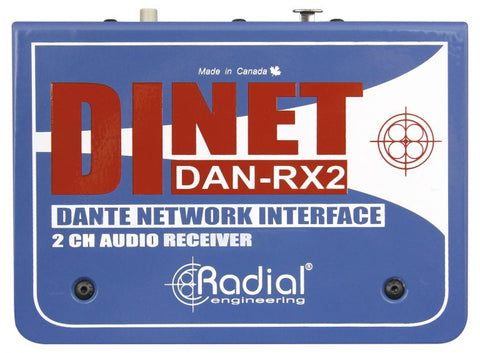

Radial DiNet DAN-RX2 Dante network receiver, Ethercon input with stereo XLR analog outputs

Vendor: Radial
Description Radial DiNet DAN-RX2 Dante network receiver, Ethercon input with stereo XLR analog outputs Dual Output Dante Endpoint The Radial DiNet DAN-RX2 is a 2-channel 24bit/96kHz digital to analog endpoint designed for allowing the user...
$579.99 $689.00
Title

Radial DiNet DAN-RX2 Dante network receiver, Ethercon input with stereo XLR analog outputs

Dual Output Dante Endpoint

The Radial DiNet DAN-RX2 is a 2-channel 24bit/96kHz digital to analog endpoint designed for allowing the user to output audio from a Dante or AES67-compliant network for connection to professional audio systems.

Robust digital audio distribution

The Radial DiNet DAN-RX2 is a road-worthy digital receiver designed with the capability to deliver two channels of analog audio to any desired location from a Dante or AES-67 compliant network. Balanced XLR outputs comes with included ground lift and a separate headphone amp with its own level control is include for personal monitoring and local testing. The RJ45 network connection is compatible with Neutrik etherCON connector carriers for preventing accidental disconnection and protect cable terminations. Available is also the redundant powering, it is intended to use for critical applications with the use of the included Power over Ethernet (PoE) and external power supply at the same time, and the Radial DiNet DAN-RX2 can be mounted with the use of optional SA series rackmount adaptor kit in a 19" equipment racks.

Features

  • Stereo analog output device for Dante networks
  • Balanced XLR outputs for connection at mic or line level
  • Built-in headphone amplifier for personal monitoring
  • 24bit/96kHz digital to analog conversion
  • Compliant to AES67 specifications
Specifications
Audio circuit type: High current balanced active output device
Number of channels: 2
Frequency response: 20Hz-20kHz
Dynamic range: >100dB
Gain: +18dBu max @ 0dBFS
Total harmonic distortion: 0.007% @ -6dBFS
Output Impedance: 150Ω
Noise: 44.1kHz, 48kHz, 88.2kHz, and 96kHz
Features
Input Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4” headphone out
Output Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4” headphone out
Extras: Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: >75dB; Power Consumption: 1.25W; Power over Ethernet (PoE): Class 1 IEEE 802.3af
General
Construction: 14-gauge steel
Finish: Durable powder coat
Size (L x W x D): 4.5” x 2” x 6” (121 x 6 x 147mm)
Power: 15VDC 400mA (included) or PoE
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
